Sliding Door Rollers: Types, Sizes, Bearings and Load – A Complete Guide from the Roller Factory

A sliding door roller is the wheel-and-bearing unit that carries the weight of a sliding door or window and lets it run along a track. Choosing one means matching five things: roller type, wheel material, groove profile, bearing and rated load. HIPAD has made bearings and rollers since 2000 and supplies sliding door rollers, window rollers, roller strips, embedded rollers and bearing wheels to OEM and wholesale buyers in 60+ countries. This guide explains each choice and links to every HIPAD roller family.

  • Door · window · wardrobe · shower
  • Nylon · POM · PU · steel wheels
  • U · V · flat groove
  • ZZ / RS ball bearings
  • Single · tandem · strip
  • Fabricante OEM desde 2000
Rodillos para puertas corredizas, rodillos para ventanas y ruedas con rodamientos HIPAD de nailon y acero

What Is a Sliding Door Roller?

A sliding door roller is a small assembly of a wheel, un ball bearing and a housing (also called a carriage or bracket). Bottom-rolling rollers sit inside the lower rail of the door or window sash and run on a track in the frame. Top-hung rollers hang the door from an overhead track, as on barn doors, glass partitions and many sliding shower doors.

The roller decides how heavy a door can be, how quiet and light it feels, and how long it lasts. A roller that is too weak, uses the wrong wheel material or does not match the track profile wears flat, jumps the track or seizes. Rollers are also called sliding door wheels, door runners (UK), carriages, patio door rollers, roldanas (Spanish) and roldanas para portas o rodízios (Portuguese).

HIPAD Rollers: Key Facts

  • Fabricante: HIPAD, Qingdao, China; bearing and roller production since 2000
  • Families: roller assemblies, roller strips, embedded rollers, adjustable and hanging rollers, nylon bracket and window rollers, track roller systems, roller wheels, miniature bearings
  • Wheels: nylon (PA), POM, PU, steel and stainless steel; U, V and flat grooves
  • Bearings: ZZ (shielded) and RS (sealed) miniature ball bearings
  • Housings: galvanized steel, stainless steel 304 / 316, aluminum, nylon
  • In-house: 60+ injection molding machines and 2000+ mold sets
  • Cómo hacer un pedido: MOQ from 1000 pcs by model · samples 5–7 days · production 20–25 working days
Roller families

HIPAD Roller Families: Find the Right Range

Each family below has its own page with models, drawings and specifications. Start with the family that matches your door or window system, then send us a sample or profile drawing to confirm the exact model.

Tira de rodillos para puertas corredizas HIPAD con múltiples ruedas de nailon de colores
Heavy doors

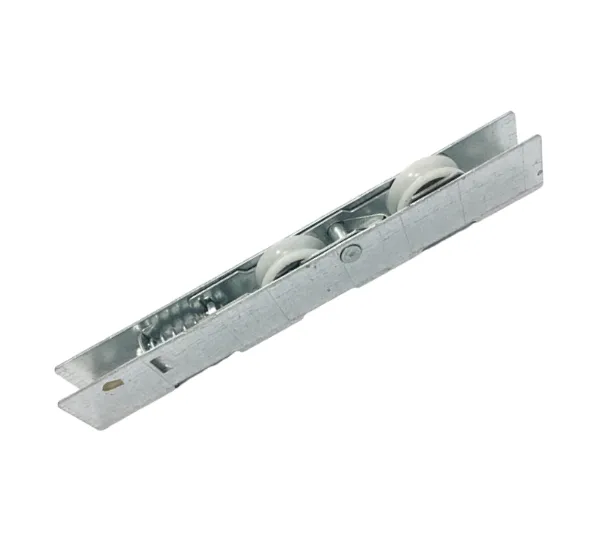

Sliding Door Roller Strips

Inline carriages with 4, 6 or 8 wheels that spread the load of heavy and double-glazed panels.

Rodillos empotrados para puertas corredizas HIPAD, ocultos en el perfil
Concealed

Embedded Sliding Door Rollers

Rollers built into the bottom rail cavity of the profile, hidden from view, for clean aluminum door designs.

Rodillo con soporte ajustable y rueda de nailon HIPAD
Adjustable

Adjustable & Hanging Rollers

Bracket rollers with height adjustment and hanging rollers for top-hung, wardrobe and interior sliding doors.

Rueda de rodillo con rodamiento de bolas HIPAD
Wheels

Ruedas y rodamientos

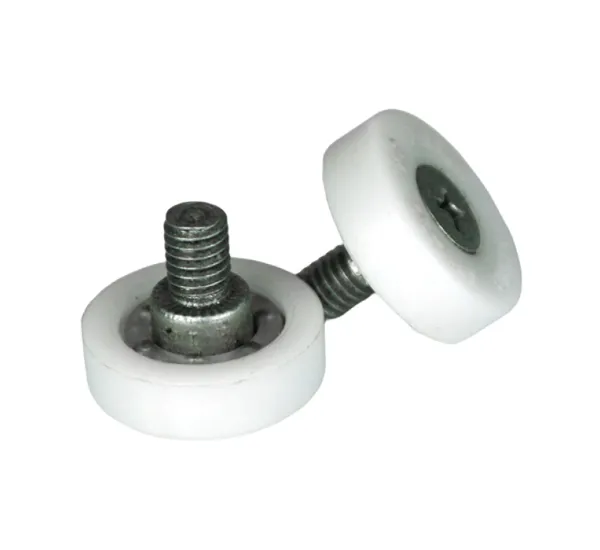

Bearing wheels in nylon, POM and steel, sold as spare wheels or for your own housings.

From our catalog

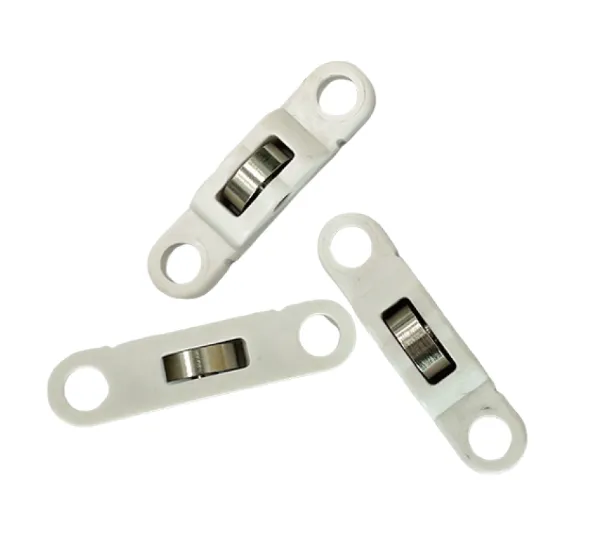

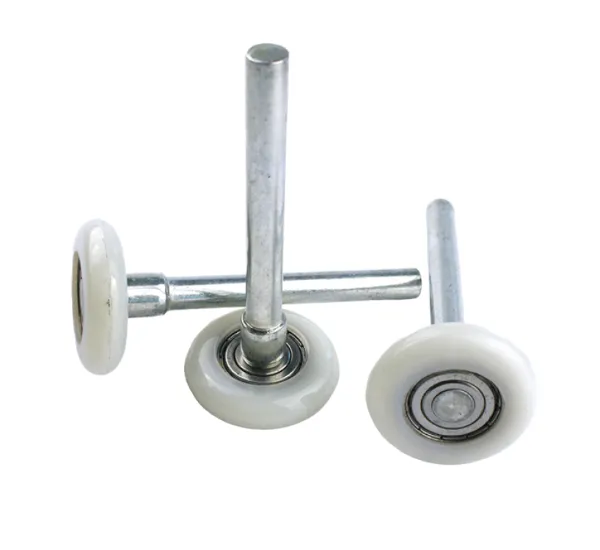

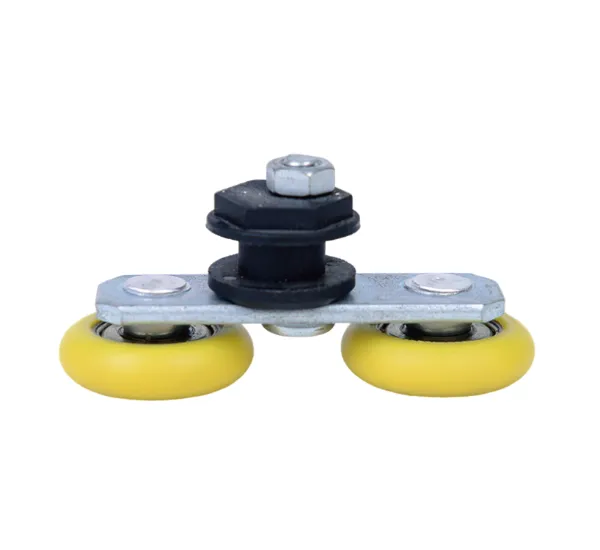

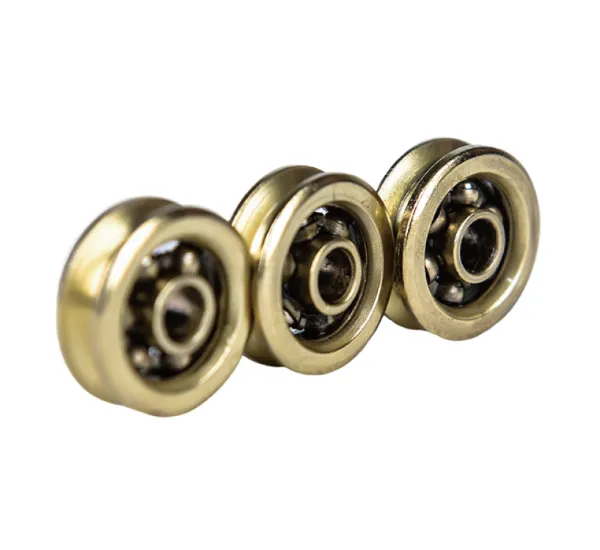

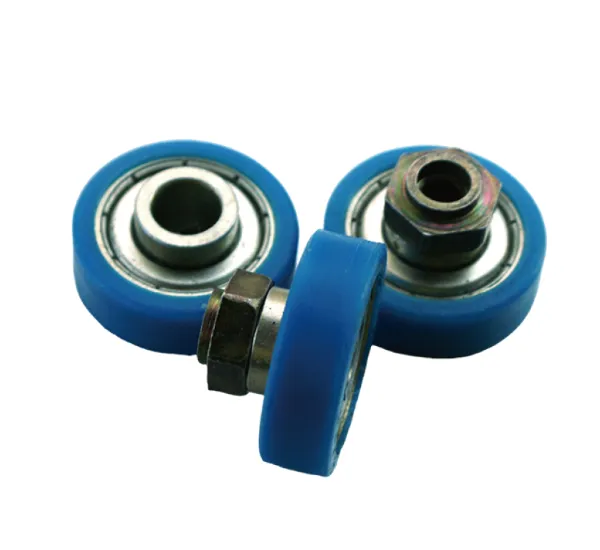

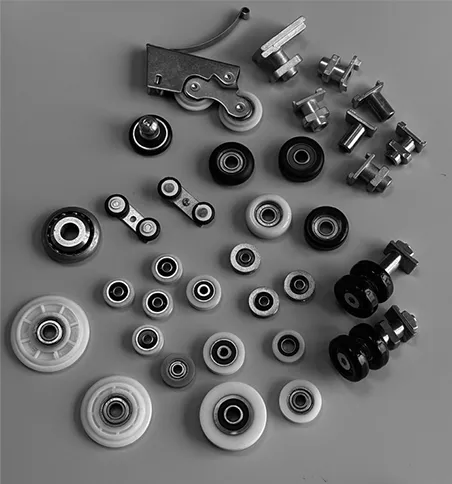

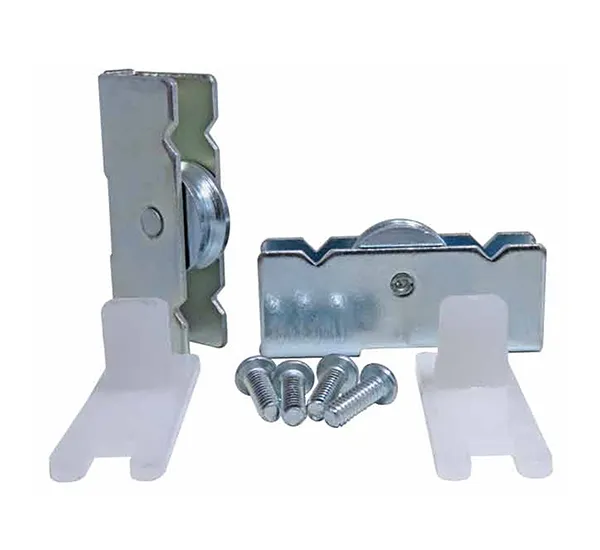

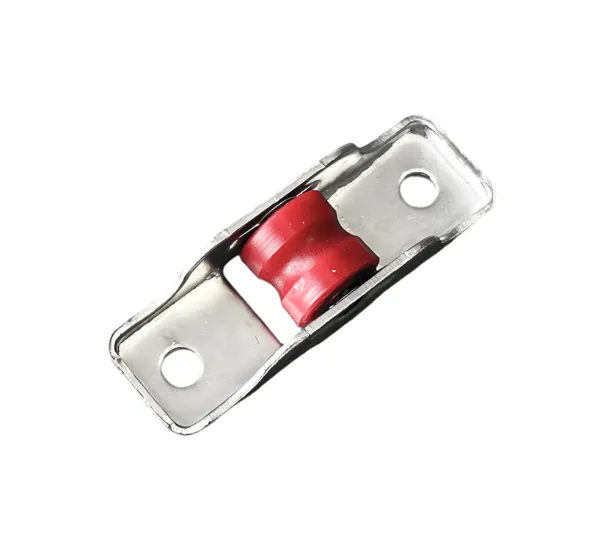

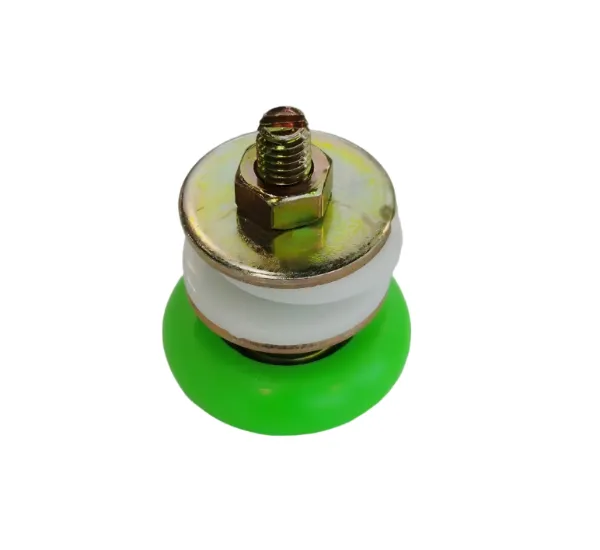

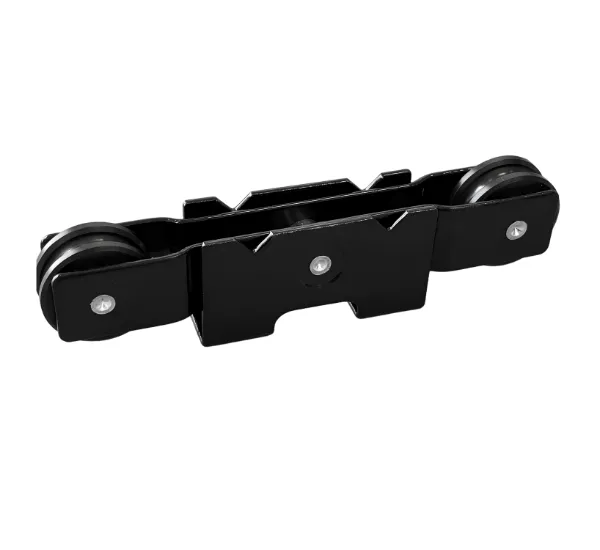

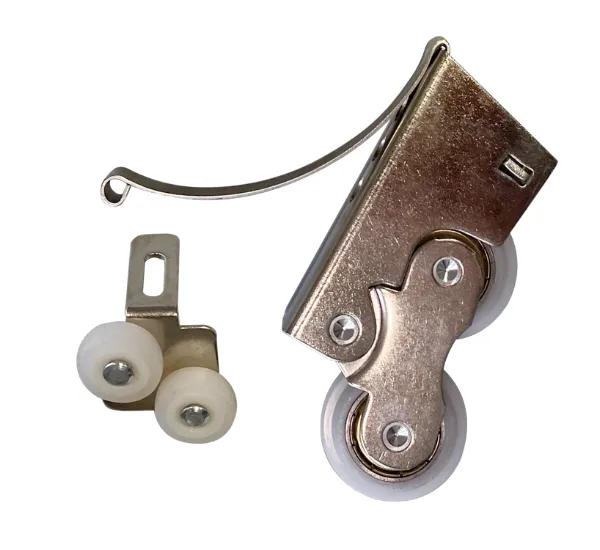

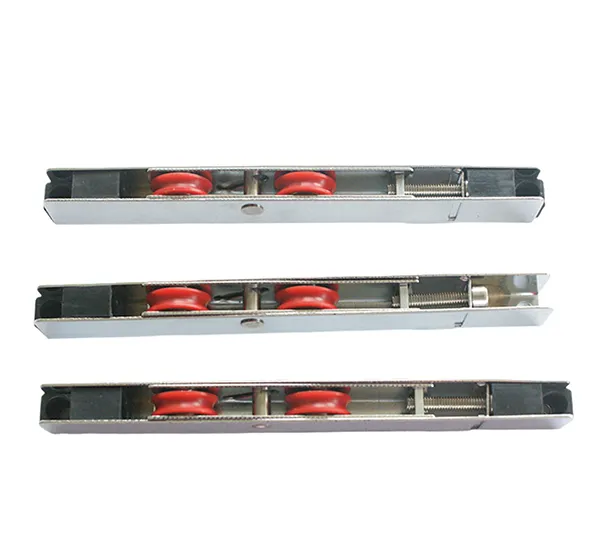

Sliding Door and Window Rollers from Our Factory

A small selection of the HDR roller range. Wheel color, housing finish and packing can be changed for your brand and market. Ask for the full catalog with drawings.

Step 1 · Roller type

Types of Sliding Door Rollers

Roller type follows the door system. Bottom-rolling rollers carry the panel from below; top-hung rollers carry it from above. The drawings show each type in cross-section.

Tipos de rodillos para puertas correderas en sección transversal Five sections: a single-wheel roller in the bottom rail of a door, a tandem roller with two wheels, an embedded roller hidden in the profile, a multi-wheel roller strip, and a top-hung roller hanging the door from an overhead track. The door profile is light grey, wheels are dark circles, housings are green and tracks are dark grey. Single-wheel rollerLight doors, windows Tandem rollerPatio and heavier doors Embedded rollerHidden in the profile Roller strip4–8 wheels, heavy panels Top-hung rollerBarn, glass, shower doors
Grey = door or window profile, green = roller housing, dark circles = wheels, dark bar = track. Not to scale.
Roller typeCómo funcionaUso habitualAjusteHIPAD family
Single-wheel rollerOne bearing wheel in a housing, two per sashSliding windows, light interior doorsFixed or screw-adjustableWindow rollers
Tandem (double-wheel) rollerTwo wheels share the load in one housingAluminum patio and balcony doorsHeight-adjustableRoller assemblies
Embedded rollerFitted inside the bottom rail cavity, not visibleModern aluminum door profilesAdjustable through an access holeEmbedded rollers
Roller strip (inline)4, 6 or 8 wheels in one long housingHeavy and double-glazed doors, Middle East style systemsUsually fixedRoller strips
Bracket / hanging rollerRoller on a bracket fixed to the panel face or topWardrobes, interior and top-hung doorsBracket slot or screwAdjustable & hanging rollers

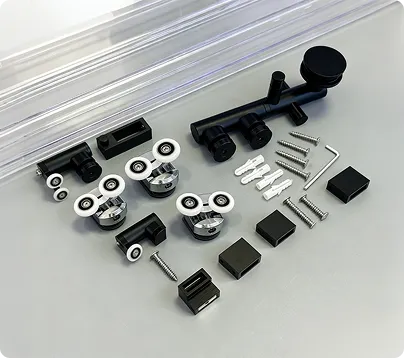

Top-hung glass rollerWheels run on an overhead tube or rail; door hangs belowGlass partitions, barn doors, sliding showersEccentric or screwSliding shower hardware
Step 2 · Wheel material

Nylon vs POM vs PU vs Steel Roller Wheels

Respuesta rápida: nylon is the standard for quiet windows and most doors; POM runs smoother with less wear; PU is the quietest on metal tracks; steel and stainless steel carry the heaviest doors and outdoor gates. Match the wheel to the track material and the door weight, not to appearance.

Wheel materialNoiseLoadWear on aluminum trackIdeal paraWatch out for
Nylon (PA)QuietLight to mediumGentleSliding windows, residential doors, wardrobesCan absorb moisture; flat spots if overloaded
POM (acetal)QuietMedioGentleSmooth, low-friction doors and windowsCosts more than nylon
PU (polyurethane tread)QuietestMedium to heavyVery gentlePremium patio doors, glass partitionsTread can wear in dirty tracks

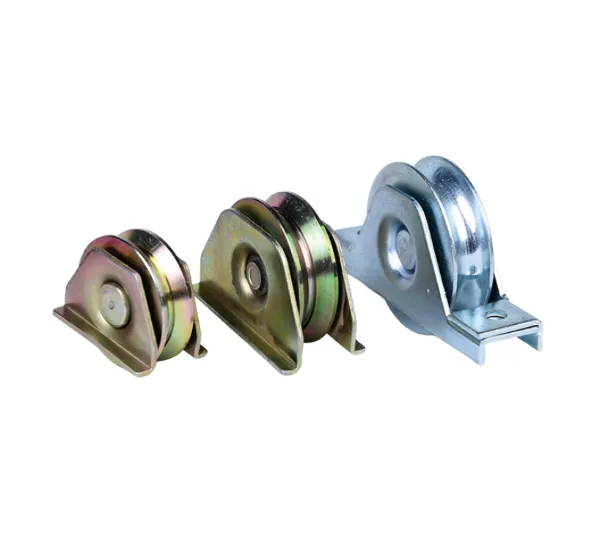

AceroLouderpesadoHarder on soft tracksLarge and heavy doors on steel or stainless tracksNeeds corrosion protection
Acero inoxidableLouderpesadoHarder on soft tracksBathrooms, coastal and outdoor doorsHigher cost

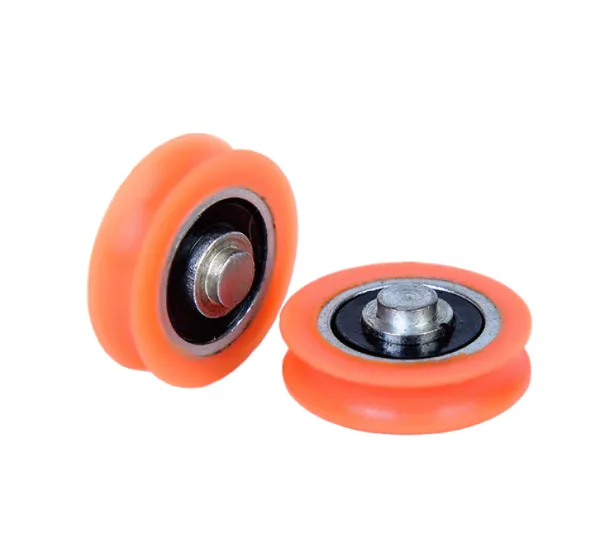

Nylon wheels are made in many colors: white, black, blue, yellow, orange and purple are all common, and many markets use color to tell systems apart. Wheel color is free to choose on OEM orders.

Step 3 · Groove and track

Match the Wheel Groove to the Track

The tread shape of the wheel must match the top of the track. A wrong match is the most common cause of noise, uneven wear and doors jumping off the track.

Wheel profileRuns onFuerza

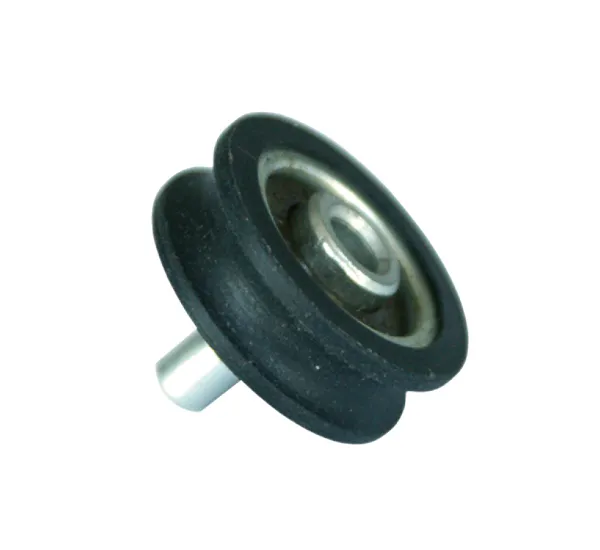

U-groove (round)Round rail or round-top trackSelf-centering, smooth
V-grooveV-shaped or angle trackPrecise guiding, low play
Flat treadFlat track or flat ribTolerant of small misalignment
Flanged (H-type)Flat rib between two flangesHolds the wheel on the track

Send a 100 mm piece of your track or a profile drawing. We match the groove, wheel diameter and housing height to it.

Perfiles de ranura de las ruedas de rodillo y rieles compatibles Four wheel cross-sections over their tracks: a U-groove wheel on a round rail, a V-groove wheel on a V track, a flat wheel on a flat track and a flanged wheel on a flat rib. U-grooveround rail V-grooveV track Flatflat track Flangedflat rib
Dark = wheel (bearing in grey), mid-grey = track. Not to scale.
Step 4 · Bearing

Roller Bearings: ZZ vs RS and Common Sizes

Most door and window rollers use a miniature deep-groove ball bearing pressed into the wheel. The bearing sets the smoothness and life of the roller far more than the wheel itself. HIPAD started in 2000 as a bearing assembler, and bearings remain an in-house product line.

ZZ (shielded)RS / 2RS (sealed)
ClosureTwo metal shieldsTwo rubber seals
FrictionLower, runs lighterSlightly higher
Dust and waterKeeps out coarse dustBetter against fine dust and splashes
Ideal paraIndoor doors, windows, wardrobesPatio doors, bathrooms, dusty or coastal sites

Single-bearing wheels suit light doors. Double-bearing wheels, or two wheels per housing, keep the wheel square to the track under heavy load and resist wobble.

RodamientoBore × OD × width (mm)Typical roller use
6233 × 10 × 4Very small window and shower wheels
6944 × 11 × 4Small window wheels
6244 × 13 × 5Window and wardrobe wheels
6255 × 16 × 5Window and light door wheels
6266 × 19 × 6Door and shower rollers
6088 × 22 × 7Standard sliding door rollers
6099 × 24 × 7Larger door rollers
690010 × 22 × 6Thin-section door wheels
620010 × 30 × 9Heavy-duty door and gate wheels
620112 × 32 × 10Heavy-duty door and gate wheels
Standard dimensions of deep-groove ball bearings. HIPAD supplies the 600, 620, 680 and 690 series in ZZ and RS versions; see miniature ball bearings.
Step 5 · Load

How to Choose a Roller for the Door Weight

Respuesta rápida: work out the panel weight, divide it between the roller units, and choose rollers whose rated load is at least 1.5 times the share each one carries for daily use (1.25 times is the minimum for light residential doors). Most sliding panels run on two roller units, one near each end.

Estimate the panel weight

  • Glass weighs about 2,5 kg por m² por milímetro of thickness. Count both panes in double glazing: 5 + 5 mm = 10 mm of glass.
  • Add about 20–30% for an aluminum frame, or weigh one finished sash.
  • Example: a 1000 × 2200 mm patio sash with 5 + 12A + 5 mm double glazing: 2.2 m² × 25 kg = 55 kg of glass, plus about 25% frame = about 69 kg. Each of two rollers carries about 35 kg; with a 1.5 safety factor, choose rollers rated for at least 52 kg each, so a tandem roller is the safe choice.

Send the sash size, glass build-up and profile drawing. We recommend the roller and confirm its rated load by test.

Roller typeTypical panel weight (2 roller units)
Window roller, single nylon wheel20–40 kg
Wardrobe and interior door roller20–40 kg
Single-wheel door roller with bearing40–80 kg
Embedded door roller60–120 kg
Tandem (double-wheel) door roller80–150 kg
Top-hung multi-wheel glass rollerUp to 100–120 kg (HIPAD 4-wheel and multi-wheel hangers)
Roller strip, 4–8 wheels120–300 kg
Steel-wheel heavy-duty roller150–300 kg and above
Typical planning ranges for one sliding panel. The rated load of each HIPAD model is confirmed against your drawing and by load testing before production.
Replacement & OEM

How to Measure a Sliding Door Roller

For a replacement roller or an OEM match, measure the old roller with calipers, not a ruler. These dimensions decide whether a roller fits the profile cavity and the track.

  1. Housing length (L), width (W) y height (H), with the adjustment screw fully in.
  2. Wheel diameter (D) y wheel width (T).
  3. Groove profile: U, V, flat or flanged, and the groove width.
  4. Rango de ajuste: how far the wheel moves up and down.
  5. Fixing: screw hole positions, clip-in tabs or end-cap fixing.
  6. Pista: the shape and width of the track top, and its material.
  7. Puerta: panel weight, glass build-up and daily use.
Puntos de medición de los rodillos para puertas corredizas Side view of a roller with arrows for housing length L, housing height H, wheel diameter D and adjustment range, and an end view showing housing width W and wheel width T. LHDadjust WT Side viewEnd view
L, W, H = housing; D, T = wheel; adjust = height adjustment range.

Rollers by Application: Doors, Windows, Wardrobes and Showers

SolicitudUsual rollerWheelRodamientoKey requirement
Aluminum sliding windowSingle-wheel or small tandem, bracket typeNylon or POMZZ, 600 seriesLow cost, quiet, fits the sash cavity
Aluminum patio / balcony doorAdjustable tandem or embedded rollerNylon, POM or PUZZ or RS, 608 / 626Load, height adjustment, smooth feel
Heavy or double-glazed doorRoller strip or steel-wheel tandemNylon or steelRS, 608 / 6200Load spread over many wheels
Wardrobe / interior doorBracket or hanging rollerNylon or POMZZ, small seriesSilent running, compact size
Glass partition / barn doorTop-hung roller on a rail or tubeNylon, PU or steelRSLook, anti-jump, door weight

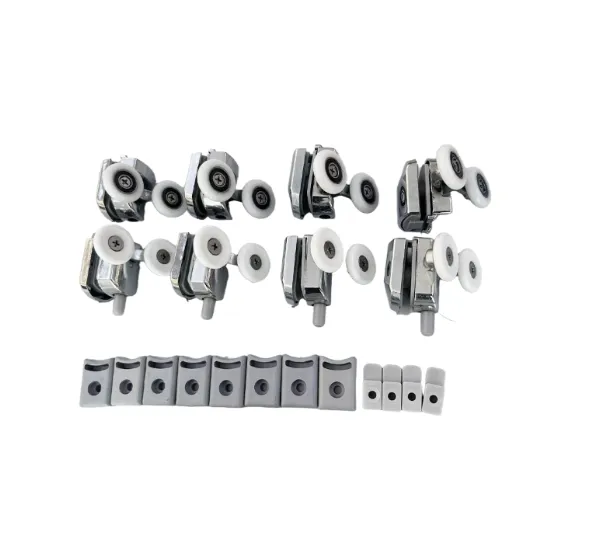

Puerta de ducha correderaTop-hung or eccentric shower rollerNylon or POMRS, stainlessCorrosion resistance; see sliding shower hardware

Rollers for regional profile systems

Sliding door and window profiles differ by region, and so do the rollers that fit them. HIPAD supplies rollers matched to local aluminum systems for buyers in Latin America (including Mexico, Peru and Brazil), the Middle East (including Iraq) and Central Asia, among them four-wheel inline strips for Middle East style systems and South American door profiles. Send a profile section or sample roller and we match the housing to the cavity.

Installation, Adjustment and Maintenance

  1. Clean the track and check it is straight and undamaged before fitting new rollers.
  2. Fit the rollers near each end of the bottom rail, usually 50–100 mm from the corners.
  3. Lift the sash onto the track and lower it carefully so the wheels sit in the groove.
  4. Gire los tornillos de ajuste para elevar la hoja hasta que libre el riel de manera uniforme y las holguras respecto al marco queden paralelas.
  5. Deslice la puerta durante todo su recorrido y compruebe que funcione silenciosamente, sin rozamientos.
  6. Mantenga limpios los rieles. Aspire la suciedad cada pocos meses; no use grasa pesada, ya que acumula partículas abrasivas.

Problemas habituales en rodillos y sus soluciones

ProblemaCausa probableCorregir
La puerta se desliza con dificultadRodamiento desgastado, suciedad en el riel o rodillos demasiado bajosLimpie el riel; eleve los rodillos; sustituya los rodillos desgastados
Roce o ruidoRodamiento dañado o zona plana en la ruedaSustituya por ruedas con rodamientos sellados (RS)
Door jumps the trackPerfil de ranura incorrecto, rueda desgastada, altura irregularHaga coincidir la ranura con el riel; nivele de nuevo ambos rodillos
La rueda está desgastada y aplanadaSobrecarga o material incorrecto de la ruedaUtilice un rodillo tándem o de tira, o una rueda de POM / PU
Óxido en la carcasaAcero común en zonas húmedas o costerasUtilice carcasas de acero inoxidable y rodamientos RS
¿Por qué comprar en HIPAD?

Una fábrica de rodillos que comenzó con rodamientos

HIPAD comenzó en el año 2000 ensamblando rodamientos y componentes de movimiento de precisión. En 2012 modernizamos la fábrica e incorporamos más piezas a nuestra producción interna, y desde 2016 aprovechamos nuestra experiencia en rodamientos y rodillos para fabricar sistemas completos de corredera. Nuestra línea de marca, Deslizamiento fácil, vida fácil, proviene de esa tradición de fabricación de rodillos. Las ruedas se moldean en nuestras propias máquinas de inyección, los rodamientos se instalan y prueban internamente, y las carcasas se estampan y ensamblan bajo un mismo sistema de calidad.

25+años de producción de rodamientos y rodillos
60+máquinas de moldeo por inyección para ruedas
2000+juegos de moldes para una personalización rápida
60+países a los que se suministra

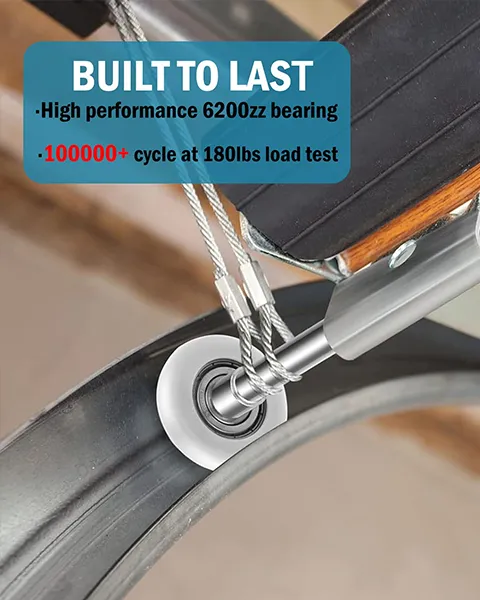

Pruebas de durabilidad y rendimiento de carga de los rodillos para puertas correderas HIPAD
Pruebas de rodadura y carga

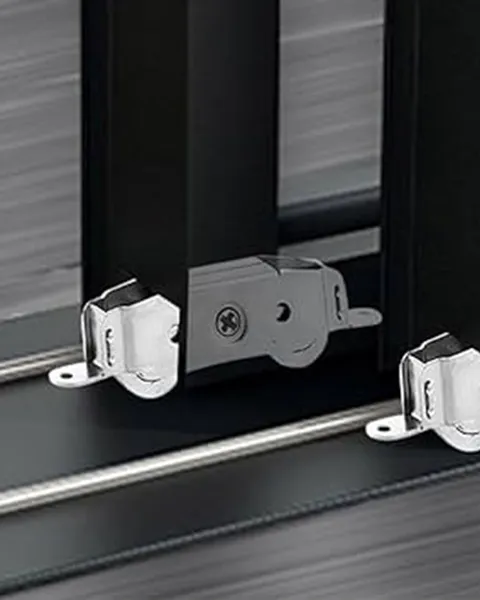

Montaje final e inspección funcional de un rodillo para puerta corrediza
Inspección funcional

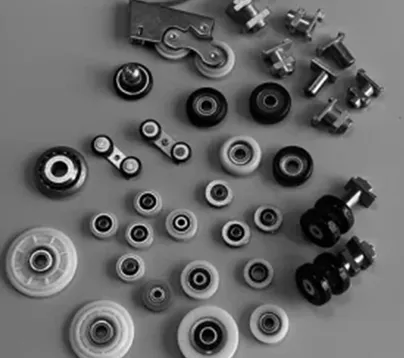

Carcasas y ruedas de rodillo con diferentes tratamientos superficiales
Tratamiento de superficies
Cajas de rodillos sobre palés listas para la exportación
Embalaje para exportación

Control de calidad y pruebas

  • Inspección de entrada de resina de nailon y POM, fleje de acero y rodamientos
  • Comprobaciones dimensionales de ruedas y carcasas con respecto a la cavidad del perfil
  • Pruebas de ciclos de rodadura continua, comprobaciones de carga estática y dinámica
  • Comprobaciones de ruido, suavidad y resistencia del soporte en rodillos terminados
  • Pruebas de niebla salina para carcasas galvanizadas y de acero inoxidable

HIPAD es ISO 9001 certificados, y los productos correspondientes llevan CE, GS y CSA C-UL certificación. Se dispone de inspección por terceros de SGS o BV, y se proporcionan informes de prueba por modelo previa solicitud.

Rodillos OEM / ODM

  • Copiar y mejorar una muestra de rodillo para adaptarla a la cavidad de su perfil
  • Elija el material, color, diámetro, ranura y rodamiento de la rueda
  • Carcasas galvanizadas, de acero inoxidable 304 / 316 o de aluminio
  • Logotipo estampado en la carcasa, bolsas y cajas de marca blanca, incluso para cantidades pequeñas
  • Embalaje a granel para distribuidores o embalaje en kits para fábricas de ventanas
1. Muestra o planoEnvíe una muestra de rodillo, una sección del perfil o un plano
2. Muestras5–7 días para moldes existentes
3. Producción20–25 working days · MOQ from 1000 pcs by model
4. EnvíoFOB Qingdao o cualquier puerto de China · Depósito del 30 %, 70 % antes del envío
Guías de compra de rodillos

Más guías sobre rodillos y rodamientos

Términos sobre rodillos para puertas correderas

TérminoSignificadoTambién se conoce como
Rodillo para puerta correderaRueda, rodamiento y carcasa que soportan un panel correderoRueda de puerta, patín, carro, roldana
Tandem rollerDos ruedas en una sola carcasaRodillo de doble rueda, rodillo gemelo
Roller stripCarcasa larga con 4–8 ruedas en líneaCarro en línea, rodillo multirrueda
Embedded rollerRodillo oculto dentro del riel inferiorRodillo oculto, rodillo integrado
Rodadura inferiorPeso de la puerta soportado en un riel de suelo o umbralDe apoyo inferior
Suspensión superiorPeso de la puerta soportado en un riel superiorDe deslizamiento superior, suspendido
ZZ / RSRodamiento de bolas con blindaje metálico / sellado de goma2Z / 2RS
RanuraForma de la banda de rodadura de la rueda (en U, en V, plana)Wheel profile

Preguntas frecuentes sobre rodillos para puertas correderas

What are the main types of sliding door rollers?

The main types are single-wheel rollers, tandem (double-wheel) rollers, embedded rollers hidden in the profile, multi-wheel roller strips, bracket or hanging rollers, and top-hung rollers that carry the door from an overhead track. The door system and the panel weight decide which type fits.

Which is better for sliding door rollers, nylon or steel wheels?

Nylon wheels are quieter and gentler on aluminum tracks, so they suit windows and most residential doors. Steel and stainless steel wheels carry heavier loads and suit large doors on steel or stainless tracks. POM and PU wheels sit in between, with smoother and quieter running than standard nylon.

How much weight can a sliding door roller hold?

It depends on the roller type. As a planning guide, window rollers carry about 20–40 kg per sash, single-wheel door rollers 40–80 kg per panel, tandem rollers 80–150 kg and multi-wheel roller strips 120–300 kg. Choose rollers rated for at least 1.5 times the share of weight each one carries.

How do I measure a sliding door roller for replacement?

Measure the housing length, width and height, the wheel diameter and width, the groove profile, the adjustment range and the fixing method, and note the track shape. Sending the old roller or a profile section is the fastest way to get an exact match.

What is the difference between ZZ and RS bearings in rollers?

ZZ bearings have two metal shields and run with lower friction, which suits indoor doors and windows. RS bearings have rubber seals that keep out fine dust and water, which suits patio doors, bathrooms and coastal sites.

Why does my sliding door jump off the track?

The usual causes are a wheel groove that does not match the track, worn wheels, or rollers set at different heights. Match the groove profile to the track, replace worn rollers and adjust both rollers so the door sits level.

Can you make rollers to match our profile or sample?

Yes. Send a sample roller, a profile section or a drawing. We match the housing to the cavity and choose the wheel material, color, groove and bearing, using our 2000+ existing molds or a new private mold.

What is the MOQ and lead time for OEM rollers?

MOQ starts from 1000 pcs and depends on the model. Samples from existing molds take 5–7 days and mass production 20–25 working days. Logo stamping and private-label packaging are available even for small quantities.

Is HIPAD a roller manufacturer or a trading company?

HIPAD is a manufacturer that started in 2000 with bearing assembly and produces rollers with its own injection molding machines, molds and assembly lines. HIPAD is ISO 9001 certified. Qingdao Hipad International Trade Co., Ltd. handles export.

Última actualización: octubre de 2026 · Revisado por Allen, ingeniero técnico de HIPAD

Envíe sus requisitos de rodillos a HIPAD

¿Por qué elegirnos?

Fábrica de rodamientos y rodillos desde el año 2000, suministrando rodillos para puertas y ventanas correderas a empresas de sistemas de perfilería, fábricas de puertas y ventanas, distribuidores e importadores en más de 60 países. Nuestro compromiso incluye:

  • Certificación ISO 9001; marcas CE, GS y CSA C-UL para los productos correspondientes; posibilidad de inspección por parte de SGS / BV
  • Ruedas, rodamientos y carcasas de fabricación propia: más de 60 máquinas de moldeo por inyección y más de 2000 moldes
  • Muestras en 5-7 días; producción en serie en 20-25 días laborables
  • OEM / ODM: adaptado a su perfil, color de rueda, logotipo y embalaje, incluso para pequeñas cantidades

Envíenos una muestra del rodillo, un dibujo del perfil o el peso del panel. Responderemos en un plazo de 24 horas con un modelo adecuado y una lista de precios de fábrica.

Solicita un presupuesto

    • Nombre de la empresa *

    • Correo electrónico de contacto *

    • País / Región*

    • WhatsApp*

    • Cantidad estimada del pedido*

    • Mensaje*

    Solicite una cotización

      Responderemos en un plazo de 24 horas. Para solicitudes urgentes, contáctenos por WhatsApp/WeChat al +86 137 9191 8989 o llame directamente al mismo número.

      *Respetamos la confidencialidad de su información y protegemos todos sus datos.

      Usaremos su información únicamente para responder a su solicitud y nunca enviaremos correos no solicitados ni mensajes promocionales.
